PB-100 High Efficient Self-walking Automatic Plate Edge Beveling, Milling Machine:
![90 Degree Pipe Cutting And Beveling Machine Self Walking]()
Product Introduction:
PB-100 Self-walking Automatic beveling machine has the advantages of small in size, light weight, easy to move and easy operation. It is applicable to use in the workshop and small factory. The working speed of PB-100 automatic beveling machine is as good as the traditional milling machine. In addition, this model machine is equipped with common cemented carbide cutting blade to reduce the cost for customers.
Machine Features:
1. Safety lock, Rear feed motor design and independent design of electric box. more sage.
2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. Models with different advantages as per customer's needs.
8. OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10. High Efficiency milling Cutters with interchangeable Inserts.
Machine process thickness:
![90 Degree Pipe Cutting And Beveling Machine Self Walking]()
Technical Data:
| PB-100 Technical Data |
| Power Supply | AC 380V 50HZ | Clamping Plate Thicknes | 1~100mm |
| Power | 6400W | Minimum holding width of plate | >200mm |
| Cutting Motor Speed | 750-1440r/min | Machining Steel Plate length | >300mm |
| Feed Motor Speed | 0~1500mm/min(Adjustable) | Worktable Height | 850-900mm |
| Maximum Milling Width | 1-100mm | Weight | 440Kg |
| Single Beveled Width of plate | 1-30mm | Processing Materials | Carbon Steel, Stainless Steel, Aluminium Alloy, Copper, Composite Plate |
| Milling Angle | 0°~90°(Adjustable) | | |

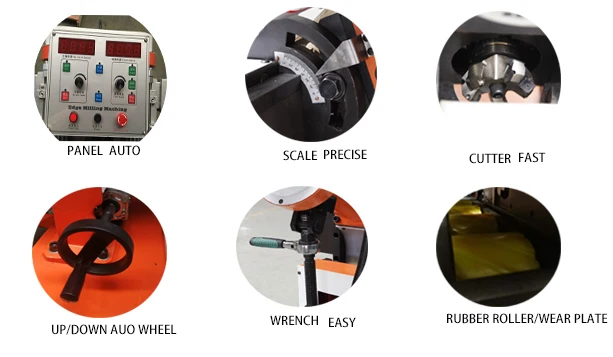

Machine spare parts in detail:
Packing:
Certification:
![90 Degree Pipe Cutting And Beveling Machine Self Walking]()
Factory:
![90 Degree Pipe Cutting And Beveling Machine Self Walking]()
Order Guide:
Before you place order to us, please let us know the following information:
* Choose the right Model
* Confirm your electric power supply ( Voltage, frequency and phase)
* Confirm the beveling angel required
* Confirm the welding joint required (U, V, Double V or Compound preparation)
* Advise your pipe material ( Carbon steel, stainless steel or others)
* Other special demands about machine
* The spare parts needed
* If the pipe wall thickness more than 30mm, inform us in advance (Important)
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ:
1. How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,
O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately
decision .Thanks!
2. Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,
hydraulic and NC.
3. About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
