Portable pipe bevel machine

  • 1
  • 2

Brand Name : WELLNIT

Model Number : ISE-352-2

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1

Price : usd875

Payment Terms : T/T, L/C

Supply Ability : 20Sets per day

Delivery Time : 5-8days

Packaging Details : WOODEN BOX

material : metal

thickness : 75mm

diameter : 150-330mm

Operation type : electric

Model : ISE-352-2

Contact Now

Electric Operation Pipe Cold Beveling Chamfering Machine ISE-352-2

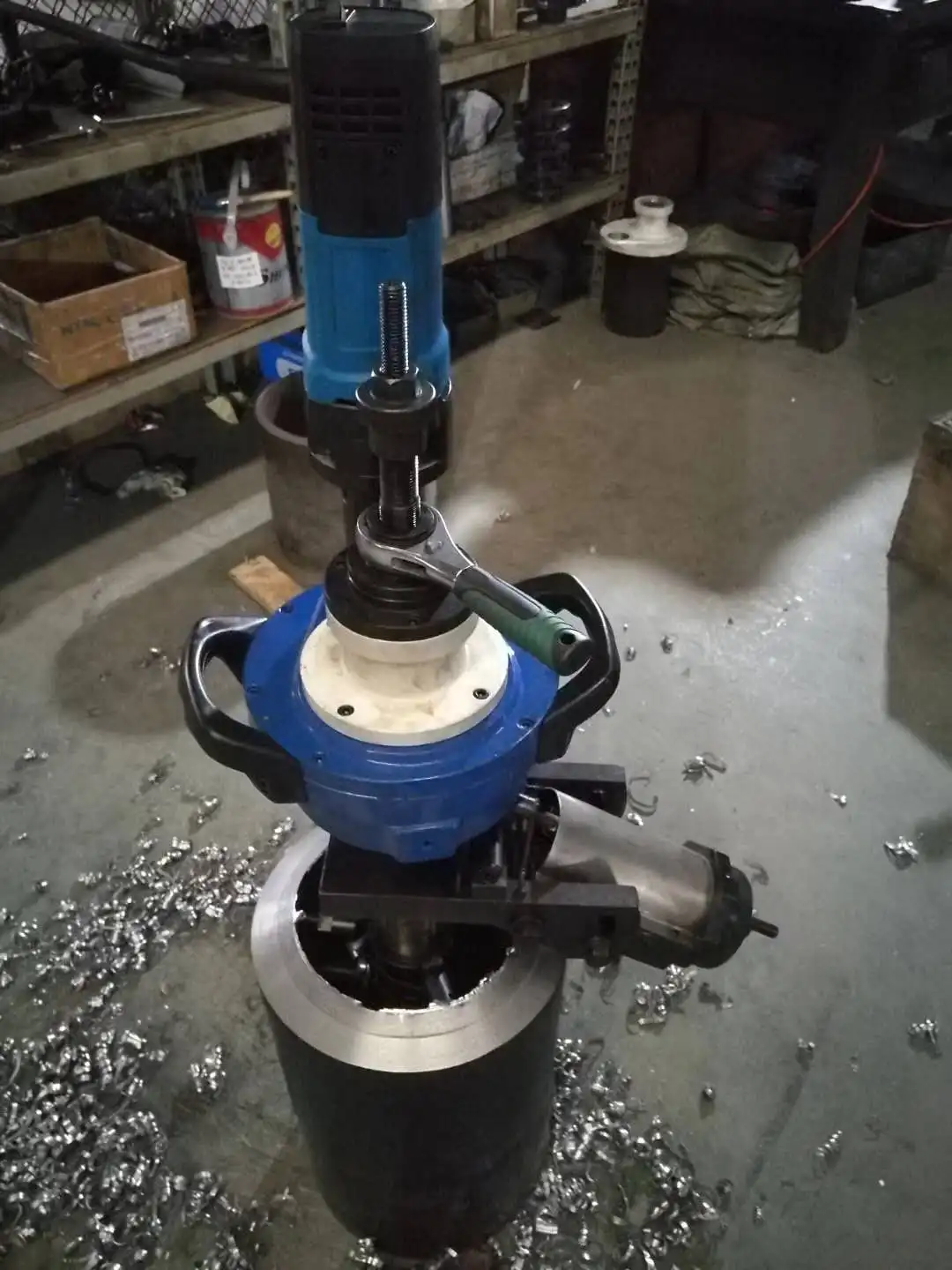

Product Show

Portable pipe bevel machine

Portable pipe bevel machine

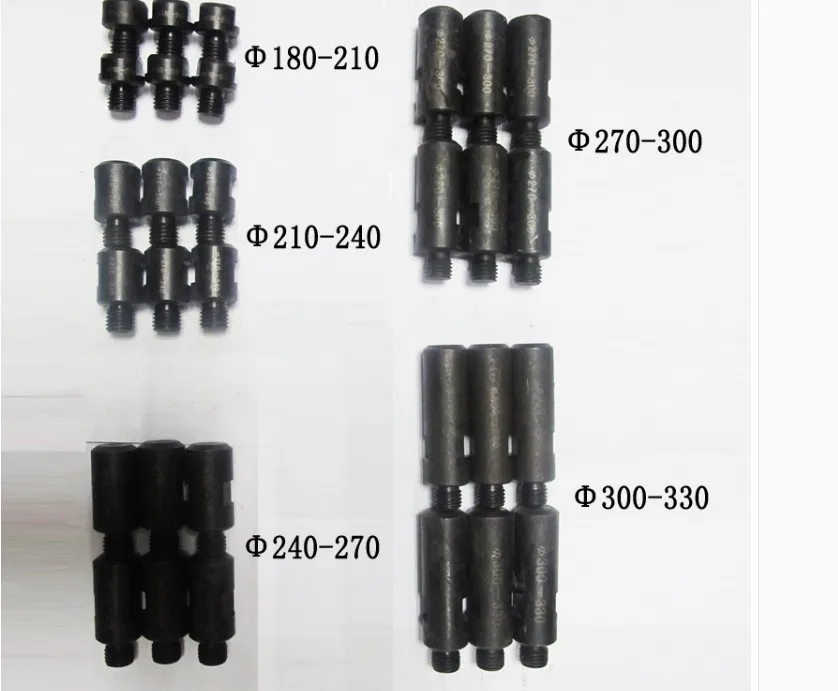

Machine Accessories

Portable pipe bevel machine

MAIN PERFORMANCE

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.This series machine adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely.

ID-MOUNTED ELECTRIC SERIES

Model
 Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
ISE-30 Φ18-30 1/2''-3/4'' ≤15 60r/min 0.6MPa 900 L/min
ISE--80 Φ28-89 1''-3'' ≤15 50r/min 0.6MPa 900 L/min
ISE--120 Φ40-120 1 1/4''-4'' ≤15 38r/min 0.6MPa 900 L/min
ISE--159 Φ65-159 2 1/2''-5'' ≤20 35r/min 0.6MPa 1000 L/min
ISE--252-1 Φ80-273 3''-10'' ≤20 16r/min 0.6MPa 1000 L/min
ISE--252-2 Φ80-273 ≤75 16r/min 0.6MPa 1000 L/min
ISE--352-1 Φ150-356 6''-14'' ≤20 14r/min 0.6MPa 1200 L/min
ISE--352-2 Φ150-356 ≤75 14r/min 0.6MPa 1200 L/min
ISE--426-1 Φ273-426 10''-16'' ≤20 12r/min 0.7MPa 1500 L/min
ISE--426-2 Φ273-426 ≤75 12r/min 0.7MPa 1500 L/min
ISE--630-1 Φ300-630 12''-24'' ≤20 10r/min 0.7MPa 1500 L/min
ISE--630-2 Φ300-630 ≤75 10r/min 0.7MPa 1500 L/min
ISE--850-1 Φ490-850 24''-34'' ≤20 9r/min 0.7MPa 1500 L/min
ISE--850-2 Φ490-850 ≤75 9r/min 0.7MPa 1500 L/min

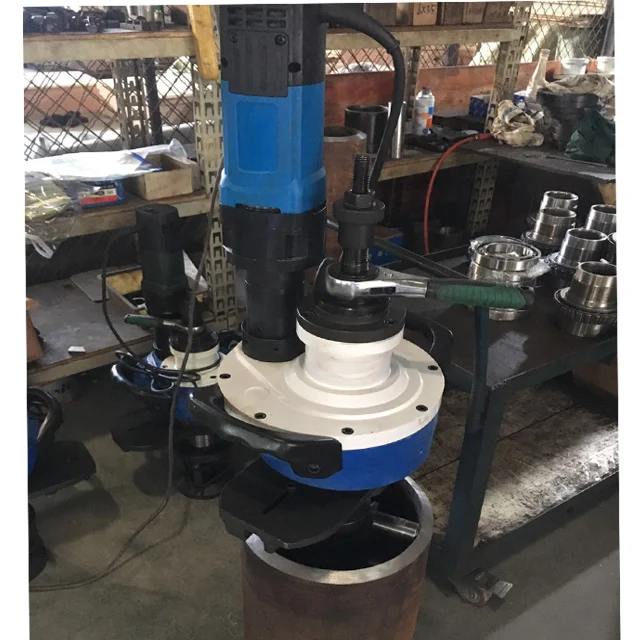

On-Site Project
