Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min

Name: Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 Rmin
Brand: Wellnit
Price: 1 USD

Quality Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min wholesale

Brand Name : Wellnit

Model Number : ISE-159

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets for a mounth

Delivery Time : within 7 days after received 100% payment

Packaging Details : plywooden

Power Supply : 220-240V 50-60Hz

Driven : Electric

Thickness : Less than 15 (Standard)

Speed Rotation : 35r/min

Working WAY : No Spark,Cold Working

Fix way : Inside Mounted

Motor Power : 1600W

Working Range : 65-159mm(ID-OD)

Price : Negotiable

Contact Now

Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min

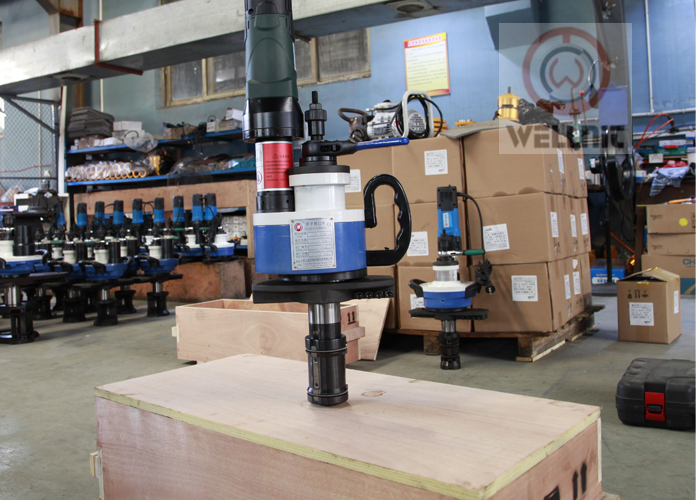

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.

advantages:

Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.

ISE-159 Beveling Machine
Voltage	220-240V
Frequency	50/60Hz
Power	1600W
Wall Thickness	≦15
Working Range	65-159mm
Rotation Speed	35r/min
Net Weight	32kg

Non-standard machines are available according to customers’requirement.
